Imada BF-SMART BlueForce SMART Impact Force Gauge Complete Kit (Article # 50V001B2)



Price: $ 1,995.00

Microtronics BlueForce Impact Force Gauge
Microtronics BlueForce Impact Force Gauge
For use with automatic/power operated doors/gates
2000N Capacity

The Microtronics BlueForce Impact Force Gauge is an impact force gauge for automatic/power operated doors/gates, which complies with standards EN 12445 and EN 12453.

Imada BlueForce Impact Force Gauge: one of a kind, with dual Bluetooth and USB interface.

Thanks to the PC-LINK mode, Blue Force can also be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values, as a well as immediate access to test results.

The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless manoeuverability; the handle is also easy to remove (using the key supplied) and can be rotated by 180 (i.e. turned upside down).

line
Features
line

  • Software installation and set-up becomes even more straightforward!
  • Offers a fully independent operation mode, in which the parameters and mathematical averages can be displayed
  • Options include: sending, deleting and browsing saved tests (all using an interactive menu).
  • Blue Force is a dual purpose gauge, as it incorporates both a display and internal storage allowing up to 50 measurements to be saved.
  • With the plug'n'go receiver device supplied, the measurements can be conveniently transferred using wireless technology.

line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ ABQ ABQ ABQ ABQ ABQ ABQ

line
Complete Kit
line

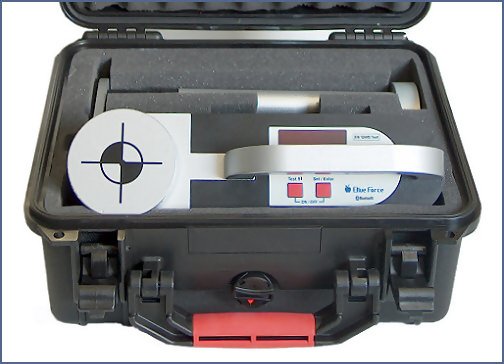

Blueforce complete kit comes supplied with, the BlueForce gauge, software, Bluetooth device, spanner for handle, instruction manual and Calibration Certificate

complete kit

line
Specifications
line

Accuracy0 - 400 N: 1%
401-1000 N: 2%
1001 - 1400 N: 4%
1401 - 2000 N: 5%
Range0 - 2000 N
Current Absorbedmin. 4mA, average 12mA, max. 80mA
Measuring Interval6 sec. sampling 1Ksmp/s
InterfaceBLUETOOTH - USB 1.1
Power9V battery
Weight1.8 kg 10%
Dimensions(L x W x H)280mm. X 80mm. X 50mm. 5%


line
Related Products
line

Linear Extension

ABQ

Angular Extension

ABQ

During the use, the instrument has to be supported in way to not alter the results of measures.

The optional accessories, (thanks to the fast-joint mechanism), permit to carry out measures by using only one hand, while with the other hand it is possible to drive the opening/closing device.

Two versions are available: The Linear Extension, for measures at 30 or 50 cm. and Angular Extension, for measures from 0,5 mt. to 2,5 mt.

ABQ

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Imada BF-SMART BlueForce SMART Impact Force Gauge Complete Kit (Article # 50V001B2) $1,995.00
Accessories Price
50V003 Linear Extension for measurements from 30 to 50 cm $295.00
50V004 Angular Extension for measurements from 1.25 and 2.5 meters (also requires use of optional Linear Extension 50V003) $325.00
50V011 EXTREME Carrying Case for BlueForce SMART and Linear Extension $245.00
50V015 Option to Unlock NFC / Bluetooth Wireless Functions $95.00
