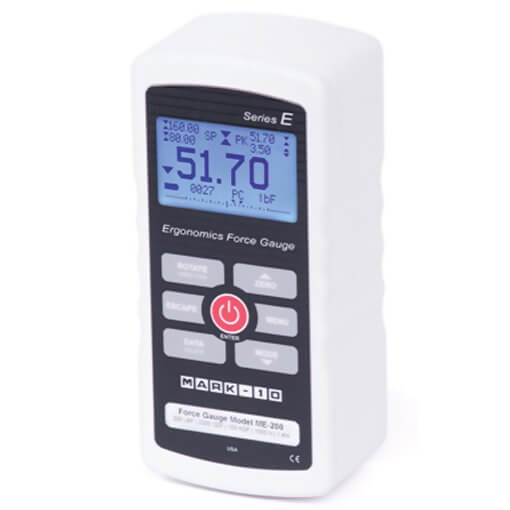

Mark-10 ME-200 Ergonomics Force Gauge Series E, 200 lbF / 1,000 N Capacity
Price: $ 1,120.00
3 Capacities up to 500 lbF
7,000 Hz peak sampling rate
0.2% accuracy
Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.
Attachments click and lock into place via innovative Click-Lock technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90 or 180 orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
Features
- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
- Click-Lock accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually orlogged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR Lite data collection software.
- Statistical calculations for saved data points
Specifications
| Accuracy | 0.2% of Full Scale | | Sampling rate | 7,000 Hz | | Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | | Battery Life | Backlight on:up to 7 hours of continuous use
Backlight off:up to 24 hours of continuous use | | Measurement units | lbF, ozF, gF, kgF, N, kN (depending on model) | | USB Output | Configurable up to 115,200 baud | | Safe overload | 200% of full scale (display shows "OVER" at 110% and above) | | Weight | 1.7 lb (0.8 kg) | | Included items | Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESURLite software, MESURgauge and MESURgauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data | | Warranty | 3 years |
Ranges (Capacity / Resolution)
 Related Products
Accessories
- Kits include a force gauge with 110V AC adapter. Add suffix E for Euro plug, U for UK plug, or A for Australian plug. Ex: EKE-100-1E
- Does not fit into carrying cases
- Does not fit into carrying cases. Requires E1006 hook
Downloads
|
|
|
