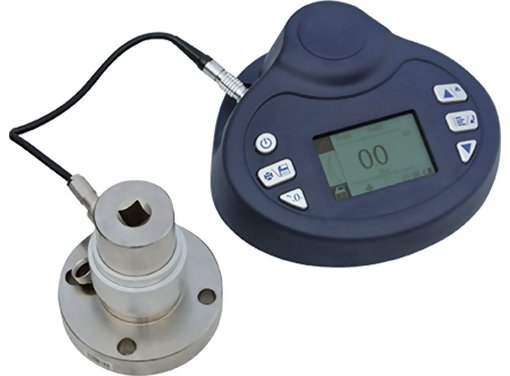

Shimpo TTST-2 Digital Torque Tool Tester, External Sensor, 500 N-m (368 ft-lb) Capacity, 3/4" tool socket size
Price: $ 1,375.00
Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
The Shimpo TTC Digital Torque Tool Tester Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, electric screwdrivers, pneumatic screwdrivers and other torque controlled power tools. The Shimpo TTC Digital Torque Tool Tester provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes. The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torques current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results. Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values. These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.
Kit Contents
- Shimpo TTC Digital Torque Tool Tester
- USB cable
- Charger adapter
- Calibration Certificate
- Printer cable
- Square driver adapter connector
| |
Features
- Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
- Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
- Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication provides fast interpretation of tool response. Selectable chart display mode aids viewing performance over the entire test
- Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
- Units come standard with USB or RS232 communication output for data upload
- 1000 memory record storage plus software provides easy data transfer
- 0.3% accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
- Operation via the rechargeable battery or the AC
- Available rundown adapter for power tool testing on certain models
- Calibration certificate with data guarantees performance upon purchase
Specifications
Measuring Range | 0.5% - 100% capacity | Accuracy | 0.3 % (5 to 100% capacity) | Units of Measure | N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range) | Measure Modes | Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak | Tool Socket Size | TTC-2/5/10: 1/4" & 1/2" (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8" & 1/2" (10 & 12.5 mm) TTC-500/800: 3/4" (19 mm) | Overload Protection | 120% of Full Scale | Sampling Rate | 2000 Hz | Peak Capture Rate | 0.05 s | Display | 160* 128 Dot matrix backlit LCD | Display Update Rate | 10 times/sec | Memory | 1000 data | Set Point | Programmable High and Low Limits | Battery Indication | Battery icon flashes when low | Charger/Adapter | Universal USB charger, input 100 240 V ac 50/60 Hz | Operating Temperature | 14 to 104F (-10 to 40C) | Humidity Limit | 20 80% RH | Power | 3.6 V dc 1600 mAH Ni-MH | Battery Life | Approx. 16 Hours continuous on full charge | Output | USB, serial port RS-232, High and low limit NPN | Dimensions | Display TTC-I: 7.75 x 7 x 3.3" (197 x 180 x 83 mm) Display TTC-E: 7.75 x 7 x 3" (197 x 180 x 75 mm) External Sensor (50, 100 N-m): 4.3 x 3.3"(110 x 83 mm) External Sensor (200, 500 & 800 N-m): 4 x 3.8" (100 x 98 mm) | Product Weight | TTC-I: 3.3 lb (1.5 kg) TTC-E Display: 2.6 lb (1.2 kg) TTC-E-200/500/800 External Sensor: 4.4 lb (2 kg) | Package Weight | TTC-I: 6.5 lb (3 kg) TTC-E-200/500/800: 10.2 lb (4.6 kg) | Warranty | 1-Year | Certification | CE |
Ranges
Model | Ranges | | Model | Ranges | TTC-I-2 | 2 (0.0002) N-m 200 (0.02) N-cm 20 (0.002)kgf-cm | TTC-I-100 | 100 (0.02) N-m 10000 (1) N-cm 1000 (0.1) kgf-cm | TTC-I-5 | 5 (0.001) N-m 500 (0.1) N-cm 50 (0.01) kgf-cm | TTC-E-200 | 200 (0.02) N-m - N-cm 2000 (0.2) kgf-cm | TTC-I-10 | 10 (0.01) N-m 1000 (1)N-cm 100 (0.1) kgf-cm | TTC-E-500 | 500 (0.05) N-m - N-cm 5000 (0.5) kgf-cm | TTC-I-20 | 20 (0.002) N-m 2000 (0.2) N-cm 200 (0.02) kgf-cm | TTC-E-800 | 800 (0.1) N-m - N-cm 8000 (1) kgf-cm | TTC-I-50 | 50 (0.01) N-m 5000 (1) N-cm 500 (0.1) kgf-cm | | |
