Imada DSV-0.4A Vector Force Gauge, 7 ozf / 200 g / 2 N Capacity
Price: $ 839.00
Built-in tilt sensor with audible alert
Accuracy 0.2%
Measure force in lbs, Kgs or N
7 Ranges up to 220 lbs
The DSV digital vector force gauges are simple-to-use basic gauges featuring user-friendly menu operation. The built-in tilt sensor with audible alert warns users of deviations from the reference angle. Selections including unit and measuring mode can be locked to prevent accidental changes.

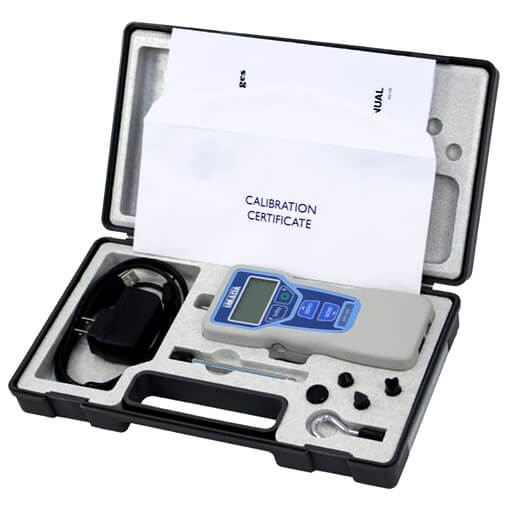

Kit Contents
- Imada DSV Vector Force Gauge
- NIST Traceable Calibration Cert
- Set of six standard attachments
- AC adapter/charger
- Instruction Manual
- Carrying Case
|  |
Features
- Includes NIST Traceable Calibration Certificate - ISO-17025 calibration certificate option available

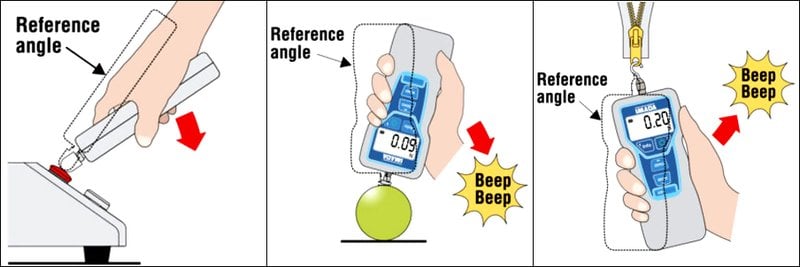

- Tilt Sensor: Alerts user to deviation from the reference angle
- Backlit LCD display with user-friendly menus
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec ultra-high sampling rate
- 1,000 Data memory; automatically calculates Max, Min, Avg statistics
- USB and RS-232C output
- Selectable real time or peak mode operation
- Setting security lock prevents accidental changes
- Overload capacity 200% F.S.; Display flashes at overload limit
- Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger
- 2-Year Warranty
Specifications
| Tilt Alarm | OFF, Strict (4), Normal (8) or Loose (18) | | Accuracy | 0.2% F.S., 1 LSD | | Selectable Units | lbf(ozf), kgf(gf) or Newtons | | Display | 4 digit backlit LCD | | Overload Capacity | Approx. 200% of F.S. | | Overload Alarm | Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S. | | Sampling Rate | 30,000/second | | Internal Memory | 1,000 data with statistics | | Battery Life | Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge | | Battery Indicator | Battery icon displays three levels of charge | | Setpoints | Programmable high/low setpoints with OK indicator | | Outputs | USB, RS-232C | | Operating Temp. | 32 to 100F (0 to 40C) | | Accessories Included | AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case |
Ranges
| Model | Capacity | Resolution | | DSV-0.4 | 7 ozf | 200 gf | 2 N | 0.001 ozf | 0.1 gf | 0.001 N | | DSV-1 | 17 ozf | 500 gf | 5 N | 0.01 ozf | 0.1 gfv0.001 N | | DSV-4 | 4.4 lbf | 2 kgf | 20 N | 0.001 lbf | 0.001 kg | 0.01 N | | DSV-11 | 11 lbf | 5 kgf | 50 N | 0.01 lbf | 0.001 kgf | 0.01 N | | DSV-44 | 44 lbf | 20 kgf | 200 N | 0.01 lbf | 0.01 kgf | 0.1 N | | DSV-110 | 110 lbf | 50 kgf | 500 N | 0.1 lbf | 0.01 kgf | 0.1 N | | DSV-220 | 220 lbf | 100 kgf | 1000 N | 0.1 lbf | 0.1 kgf | 1 N |
