Mark-10 M5I Advanced Digital Force / Torque Indicator



Price: $ 960.00

Mark-10 Series 5I Advanced Force / Torque Indicator
7,000 Hz sampling rate

0.1% accuracy

1,000 point data memory and statistics

USB, RS-232, Mitutoyo, and analog outputs

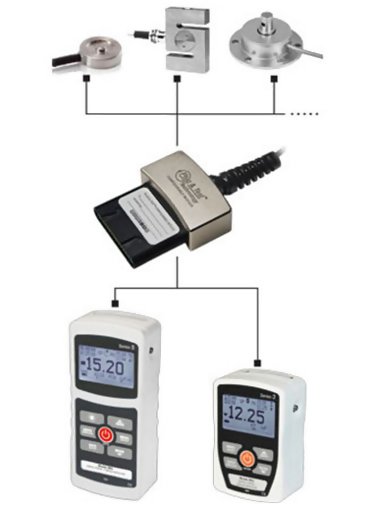

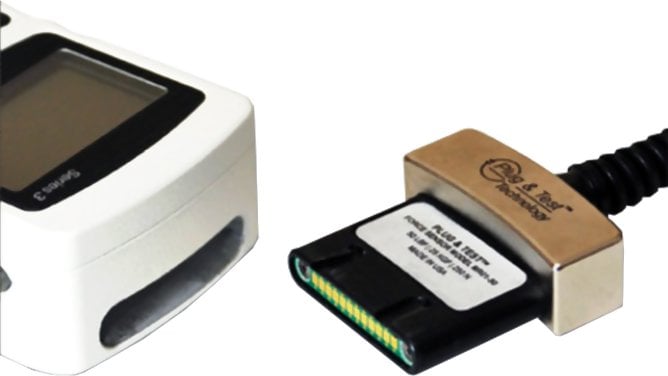

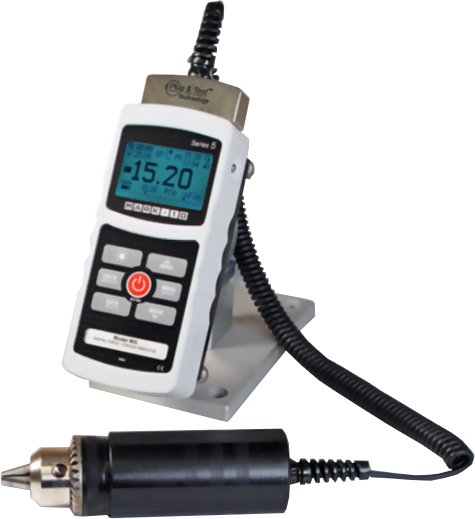

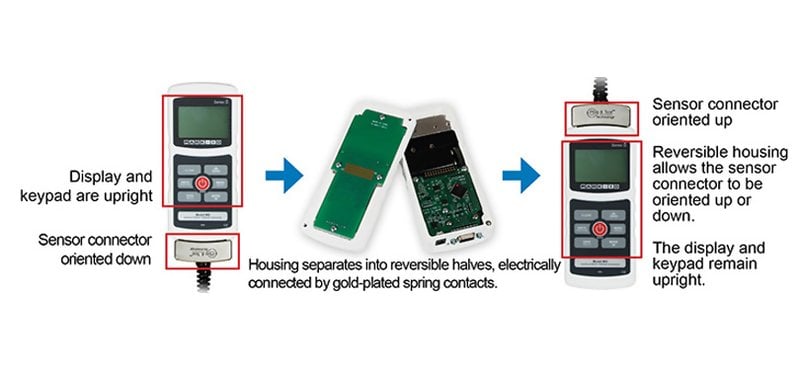

The Mark-10 Series-5I Advanced Force / Torque Indicator indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see below). With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensors smart connector, not the indicator, allowing for true interchangeability. Sensor password protection prevents use of an unauthorized sensor. In addition, all sensors are fully compatible with the more basic 3i force / torque indicator.

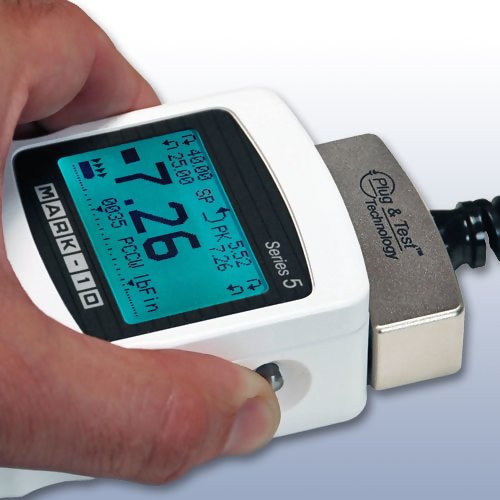

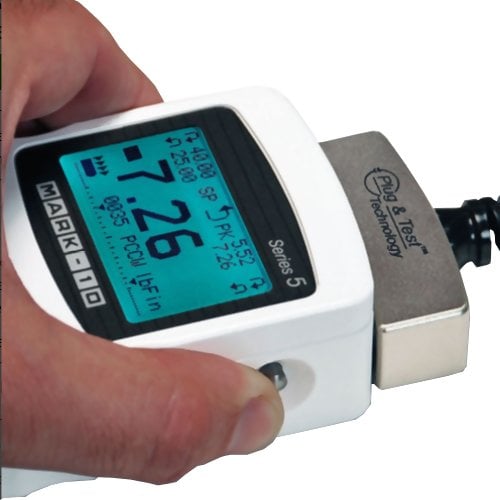

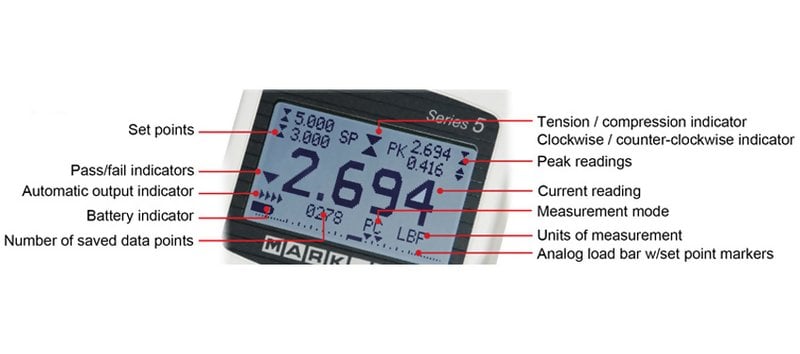

The 5i shares its menu structure and most specifications with Series 5 digital force gauges. The sampling rate is a blazing fast 7,000 Hz, producing accurate results even for quick-action tests. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the indicators many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. An analog load bar is shown on the display for graphical representation of applied force or torque.

The 5is averaging mode addresses the need to record the average load over time, while external trigger mode makes switch activation testing simple and accurate.

The 5i includes MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data saved in the indicators memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.


line
Kit Contents
line

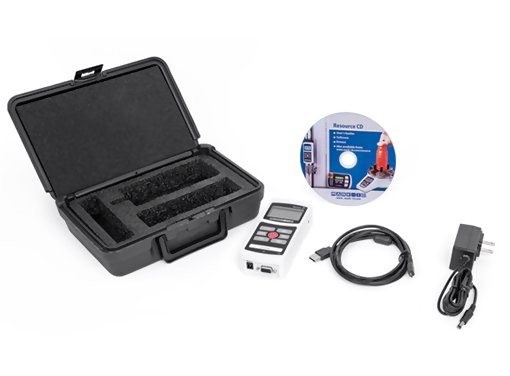

  • Mark-10 Series 5I Advanced Force / Torque Indicator
  • USB cable
  • AC adapter
  • Battery
  • Resource CD
  • Carrying case
  • Three (3) year warranty


line
Features
line

  • Interchangeable force and torque sensors through Plug & Test technology (sensors are sold separately)
  • Sensor password protection, for preventing use of an unauthorized sensor
  • Password protection for individual keys and calibration
  • High-speed 7,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • Large backlit graphic display
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Live load bar graph with set point markers
  • Programmable set points, with alarms and outputs
  • Peak readings and set points always displayed
  • Averaging mode calculates average readings over time
  • External trigger mode for switch contact testing or remotely stopping display update
  • Automatic data output via USB/RS-232
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • CE mark


line

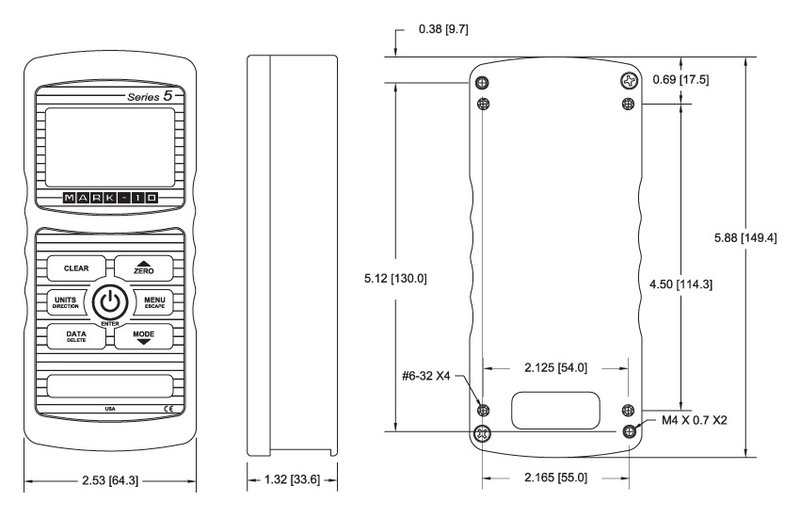

Specifications
line

Accuracy0.1% of full scale 1 digit + sensor
Sampling rate7,000 Hz
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
OutputsUSB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Configurable SettingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload150% of full scale (display shows "OVER" at 110% and above)
WeightWeight: 0.7 lbs (0.3 kg)
Warranty3 years


line
Available Sensors
line

ModelDescriptionModelDescriptionModelDescription
R01
ABQ
Rugged "S-beam" force sensorR02
ABQ
Compression Force SensorR03
ABQ
Tension and Compression Force Sensor
R04
ABQ
Miniature S-Beam Force SensorR05
ABQ
Measures push and pull forceR50
ABQ
Universal Torque Sensor
R51
ABQ
General torque testingR52
ABQ
Torque tool testingR53
ABQ

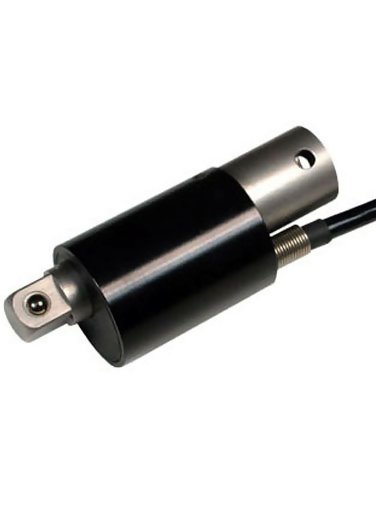

Closure, bottle cap testing
R54
ABQ
Square Drive Torque Sensor


line
Related Products
line

Mark-10 AC1008 - Table Top Stand For BGI Force Gauge

related

line

Mark-10 Force Gauge Attachments

related

line
Downloads
line

Mark-10 Series-5I Advanced Force / Torque Indicator - Instruction Manual
Mark-10 Series-5I Advanced Force / Torque Indicator - Data Sheet
Mark-10 Digital Force Gauge Series I - Comparison Chart

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Mark-10 M5I Advanced Digital Force / Torque Indicator $960.00
Accessories Price
15-1004 MESURgauge Software $530.00
09-1163 Cable, Series 5 to RS-232 $80.00
08-1026 Spare rechargeable battery $20.00
AC1030 Spare AC adapter, 110V $45.00
AC1031 Spare AC adapter, 220V EUR $45.00
AC1032 Spare AC adapter, 220V UK $45.00
AC1035 Spare AC adapter, 220V AUS $45.00
AC1008 Stand, table top $160.00
09-1162 Multi-function cable, 5i to DC controller $135.00
SVC014 Upgrade service BGI style connector to Plug and Test connector $295.00
