For use with automatic/power operated doors/gates
2000N Capacity
The Microtronics BlueForce Impact Force Gauge is an impact force gauge for automatic/power operated doors/gates, which complies with standards EN 12445 and EN 12453.
Imada BlueForce Impact Force Gauge: one of a kind, with dual Bluetooth and USB interface.
Thanks to the PC-LINK mode, Blue Force can also be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values, as a well as immediate access to test results.
The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless manoeuverability; the handle is also easy to remove (using the key supplied) and can be rotated by 180 (i.e. turned upside down).
Kit Options
BlueForce Smart is offered in 3 different kits. Microtronics suggests the 50V001B2-PL kit as the best quality-price ratio.
Every kit includes the software for Windows-PC, whereas the others accessories can be added later.

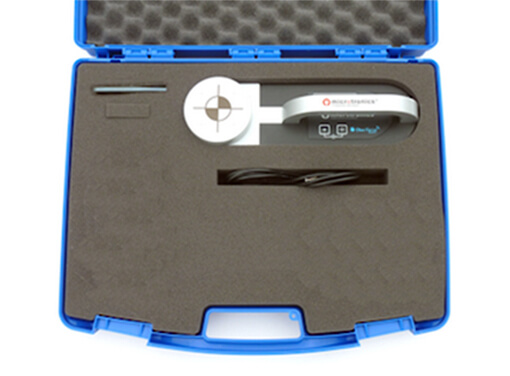

BlueForce Smart Basic - 50V001B2
- BlueForce Smart Instrument
- Bluetooth/NFC Smart functions + App
- USB cable for PC
- Hex wrench for handle disassembly
- Software
- Certificate of Calibration downloadable from download section
- Instructions
- Carry-case with pre-formed interior
|  |

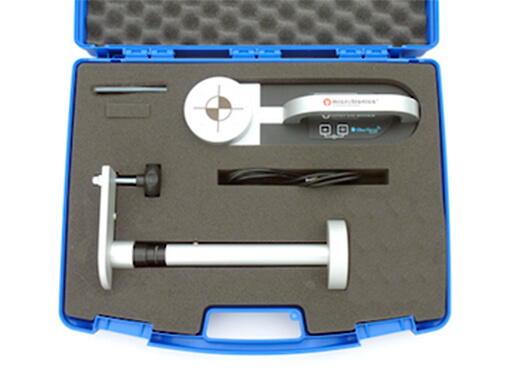

BlueForce Smart Pl Kit - 50V001B2-PL
- BlueForce Smart Instrument
- Straight Extension
- Bluetooth/NFC Smart functions + App
- USB cable for PC
- Hex wrench for handle disassembly
- Software
- Certificate of Calibration downloadable from download section
- Instructions
- Carry-case with pre-formed interior
|  |

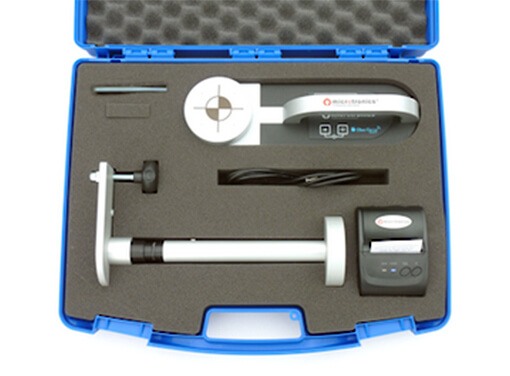

BlueForce Smart PL Kit + FTP - 50V001B2-PRN
- BlueForce Smart Instrument
- Straight Extension
- Thermal Printer FTP
- Bluetooth/NFC Smart functions + App
- USB cable for PC
- Hex wrench for handle disassembly
- Software
- Certificate of Calibration downloadable from download section
- Instructions
- Carry-case with pre-formed interior
|  |
Features
- Software installation and set-up becomes even more straightforward!
- Offers a fully independent operation mode, in which the parameters and mathematical averages can be displayed
- Options include: sending, deleting and browsing saved tests (all using an interactive menu).
- Blue Force is a dual purpose gauge, as it incorporates both a display and internal storage allowing up to 50 measurements to be saved.
- With the plug'n'go receiver device supplied, the measurements can be conveniently transferred using wireless technology.
Specifications
| Accuracy | 0 - 400 N: 1%
401-1000 N: 2%
1001 - 1400 N: 4%
1401 - 2000 N: 5% |
| Range | 0 - 2000 N |
| Current Absorbed | min. 4mA, average 12mA, max. 80mA |
| Measuring Interval | 6 sec. sampling 1Ksmp/s |
| Interface | BLUETOOTH - USB 1.1 |
| Power | 9V battery |
| Weight | 1.8 kg 10% |
| Dimensions(L x W x H) | 280mm. X 80mm. X 50mm. 5% |
Extension
| Linear Extension |  |
Angular Extension
During the use, the instrument has to be supported in way to not alter the results of measures. The optional accessories, (thanks to the fast-joint mechanism), permit to carry out measures by using only one hand, while with the other hand it is possible to drive the opening/closing device. |  |
| Two versions are available: The Linear Extension, for measures at 30 or 50 cm. and Angular Extension, for measures from 0,5 mt. to 2,5 mt. |  |
