Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.
Attachments click and lock into place via innovative Click-Lock technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90 or 180 orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
- Click-Lock accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR Lite data collection software.
- Statistical calculations for saved data points
Ranges (Capacity / Resolution)

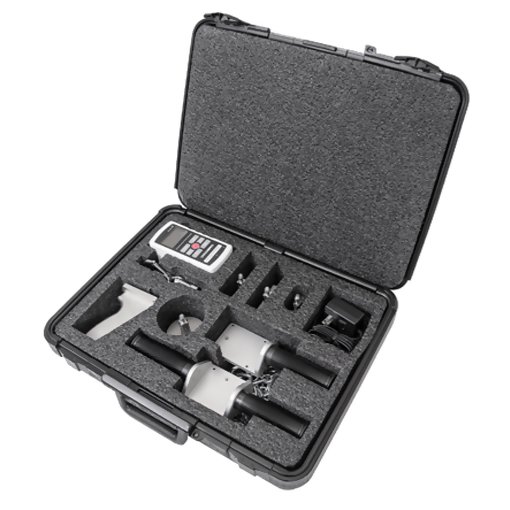

Mark-10 Series-E Ergonomics Force Gauges Professional EKE Kits:
Mark-10 ME Digital Force Gage, E1002 Square Padded Attachment, E1003 Rectangular Padded Attachment, E1004 Curved Padded Attachment, E1005 Circular Padded Attachment, E1006 Hook, E1007 Chain/Hook Assembly, E1008 Single Handle Grip, E1009 Double Handle Grip, E1010 Pistol Grip and E1001 Large Carrying Case.
* Kits include a force gauge with 110V AC adapter.
|EKE-100-1||Advanced ergonomics kit, 100 lbF / 500 N|
|EKE-200-1||Advanced ergonomics kit, 200 lbF / 1,000 N|
|EKE-500-1||Advanced ergonomics kit, 500 lbF / 2,500 N|
|EKE-100-2||Professional ergonomics kit, 100 lbF / 500 N|
|EKE-200-2||Professional ergonomics kit, 200 lbF / 1,000 N|
|EKE-500-2||Professional ergonomics kit, 500 lbF / 2,500 N|
|Model||Description||Advanced Kit*||Professional Kit*|
|E1002||Padded attachment, square|
|E1003||Padded attachment, rectangular|
|E1004||Padded attachment, curved|
|E1005||Padded attachment, circular|
|E1007||Chain / hook assembly|
|E1008||Single handle grip|
|E1009||Double handle grip|
|E1000||Carrying case, small|
|E1001||Carrying case, large|
|Accuracy||0.2% of Full Scale|
|Sampling rate||7,000 Hz|
|Power||AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.|
|Battery Life||Backlight on:up to 7 hours of continuous use|
Backlight off:up to 24 hours of continuous use
|Measurement units||lbF, ozF, gF, kgF, N, kN (depending on model)|
|USB Output||Configurable up to 115,200 baud|
|Safe overload||200% of full scale (display shows "OVER" at 110% and above)|
|Weight||1.7 lb (0.8 kg)|
|Included items||Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESURLite software, MESURgauge and MESURgauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data|
