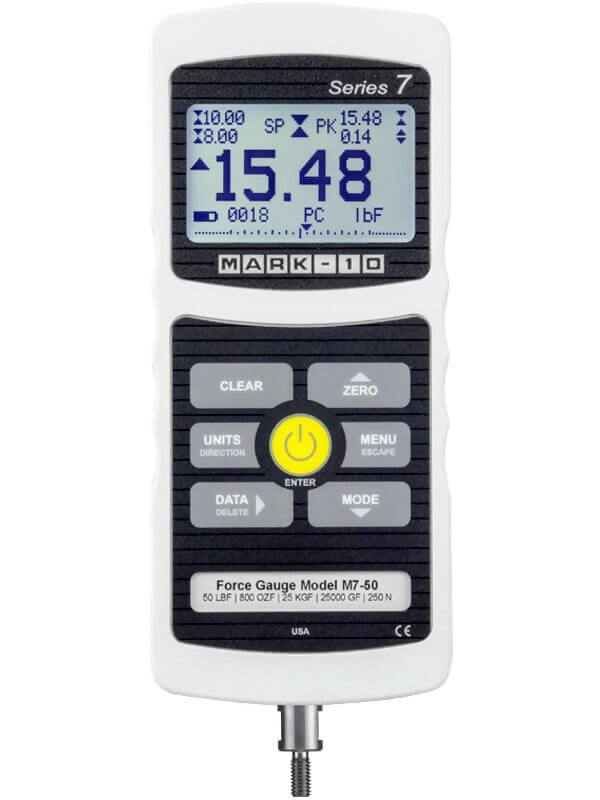

Mark-10 Series 7 Professional Digital Force Gauge
Mark-10 Series 7 Professional Digital Force Gauge
Price: $ 1,515.25 to $ 1,657.75
Mark-10 Series 7 Professional Digital Force Gauge with USB Output & Software

14,000 Hz peak sampling rate

Continuous data capture with 5,000-data point buffer and bulk output

0.1% accuracy
The Series 7 is designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature 0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests. Mark-10 Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. The Mark-10 Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection. Series 7 force gauges are directly compatible with our ESM301 test stand, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.

Please click on the links below for additional information on the models available for this product:
Models Available Price
Mark-10 M7-012 Professional Digital Force Gauge Series 7, 0.12 lbF / 2 ozF Capacity
1,657.75
Mark-10 M7-025 Professional Digital Force Gauge Series 7, 0.25 lbF / 4 ozF Capacity
1,657.75
Mark-10 M7-05 Professional Digital Force Gauge Series 7, 0.5 lbF / 8 ozF Capacity
1,657.75
Mark-10 M7-10 Professional Digital Force Gauge Series 7, 10 lbF / 160 ozF Capacity
1,515.25
Mark-10 M7-100 Professional Digital Force Gauge Series 7, 100 lbF / 1600 ozF Capacity
1,515.25
Mark-10 M7-2 Professional Digital Force Gauge Series 7, 2 lbF / 32 ozF Capacity
1,515.25
Mark-10 M7-20 Professional Digital Force Gauge Series 7, 20 lbF / 320 ozF Capacity
1,515.25
Mark-10 M7-200 Professional Digital Force Gauge Series 7, 200 lbF / 3200 ozF Capacity
1,657.75
Mark-10 M7-5 Professional Digital Force Gauge Series 7, 5 lbF / 80 ozF Capacity
1,515.25
Mark-10 M7-50 Professional Digital Force Gauge Series 7, 50 lbF / 800 ozF Capacity
1,515.25
Mark-10 M7-500 Professional Digital Force Gauge Series 7, 500 lbF / 8000 ozF Capacity
1,657.75
