Shimpo FGV-1000HXY High Capacity Digital Force Gauge with USB Output, 1000 lb / 453.6 kg / 4448 N Capacity

Price: $ 1,575.00

Shimpo FGV-HXY High Capacity Digital Force Gauge
Shimpo FGV-HXY High Capacity Digital Force Gauge with USB Output

Reversible Keypad and Display

1000 Hz Sample Rate, provides more accurate results
NIST-Traceable Certificate of Calibration not included (sold separately)

The Shimpo FGV-HXY High Capacity Digital Force Gauge offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180 reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations provide fast access to maximum, minimum, average and standard deviation data. Models includes software and RS-232 cable allowing further data analysis on a PC. The FGV-HXYs 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.


  • 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
  • On board statistics provides immediate results and analysis of test data
  • Quick retrieval of peak measurement with a single push button in test stand
  • Operates using rechargeable battery or AC line voltage
  • User selection of engineering units (Lbs, Kf or Newtons) and User-set display update rate allows optimal setting for each type of test
  • Include built-in datalogger with 3 outputs: USB, RS-232 & Analog Output
  • 180 Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Provide Built-In Hi-Lo Comparator function provides user with easy Go-No Go Testing
  • High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
  • CE & RoHs Certified
  • Measure and record compression and tension tests. Permits true "push-pull" testing

Force Ranges

FGV-500HXY500 lb
250 kg
25000 N
0.1 lb
0.1 kg
1 N
FGV-1000HXY1000 lb
453.6 kg
4448 N
0.1 lb
0.1 kg
1 N




Accuracy 0.2% F.S.
Display Four digit LCD, .47 high (12 mm) with various indicators including tension and low battery indication (reversible) Minus sign for tension
Display Update Rate 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate 1000 Hz
Average/Peak Mode Selectable
Overload Capacity 150% of F.S.
Power Rechargeable Ni-Cad batteries (included) or AC adapter/charger (included)
Auto Power Shut-Off Yes (not active if adapter/charge is in use)
Battery Charge 17 hours (when fully charged)
Temperature Range 32 - 104F (0 - 40C)
Dimensions 8.43" x 3.23" x 2.25" (214 x 82 x 57 mm)
Product Weight Approx. 2 lb (900 g) for 500 lb range; 2.65 lb (1.20 kg) for 1000 lb range
Package Weight Approx. 7.45 lb (3.38 kg) for 500 lb range; 8.25 lb (3.74 kg) for 1000 lb range
Certification CE, RoHs

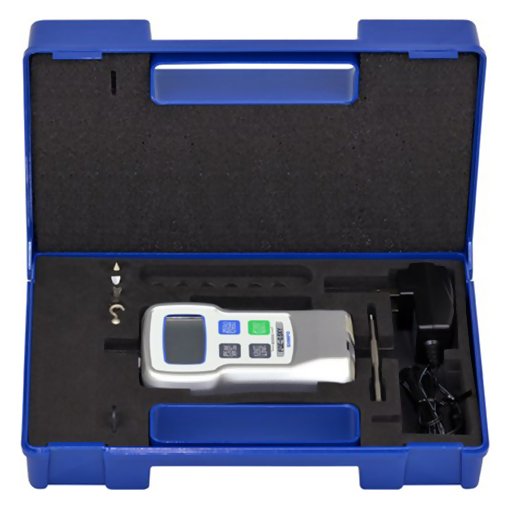

Complete Kit

The FGV-HXY is supplied in a protective carrying case with AC adapter/charger, carrying case, 2 handles, metric thread to inch adapter and attachments (flat head, hook,chisel, notched head, cone head, extension rod), USB cable, RS-232 cable included with FGV-HXY seriesonly.

complete kit


Shimpo FGV-HXY High Capacity Digital Force Gauge - Instruction Manual

Buy Now

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Shimpo FGV-1000HXY High Capacity Digital Force Gauge with USB Output, 1000 lb / 453.6 kg / 4448 N Capacity $1,575.00
Accessories Price
FGH-HANDLE Handle for FGV-HXY Gauges $45.00
NISTCAL-10PT Upgrade to 10pt Long Form Calibration Cert $195.00
